Laboratory Furnaces
Industial Oven with Air Circulating System Up to 400°c
Technical Specification
General Furnaces
Technical Specification
Safety system: Over-temperature limit controller with sonic alarm
Tempering Furnaces with Air Circulating System
Technical Specification
Applications: Tempering, stress relieving, welding electrodes baking, ...
Type: Conventional hinged door front or top loading
Heating system: Electrical / Fire Burners
Temperature Stability: ±1°C
Thermocouple: Type K, thermocouple with stainless steel sheath
Air circulation system: Combinational, with a centrifuge propeller made of refractory stainless steel
Loading: On the bottom of the furnace/ bogie hearth furnace (for capacity of more than 1000 lit)
Inner chamber: Standard heat resistant stainless steel
Door: Insulated with light, thermal shock resistant ceramic fibers
Power system: Zero cross switching system by triac and thyristor and without
any disturbing harmonics
Safety system: Over-temperature limit controller with sonic alarm
Atmosphere Controlled Furnaces
Technical Specification
Applications: Heat treatment under protective atmosphere (inert & reduction)
including annealing, brazing, sintering, …
Type: Conventional hinged front or top-loading
Max. temperature: 1250°C (for higher working temperature please refer to page 32)
Heating Element Type: Swedish Kanthal elements
Thermocouple: Type K thermocouple with ceramic sheath
Insulation: High quality ceramic boards
Loading: On the bottom of the furnace
Furnace chamber: High quality heat resistant stainless steel
Power system: Zero cross switching system by triac and thyristor and without
any disturbing harmonics
Safety system: Over-temperature limit controller with sonic alarm
Firing of Ceramic Furnaces

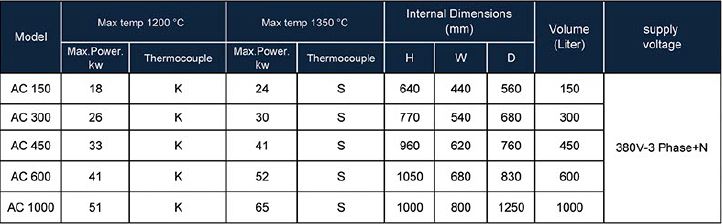

Technical Specification
Applications: Debinding, Sintering, Firing, ...
Type: Conventional hinged door front or top loading
Heating system: Electrical / Fire Burners
Heating Element: Five-sided heating, including three side walls, bottom and door
Thermocouple: Type K / S thermocouple with ceramic sheath
Inner chamber and door: High grade insulating fire bricks made by Isolite-Japan
Power system: Zero cross switching system by triac and thyristor and without any
disturbing harmonics
Safety system: Over-temperature limit controller with sonic alarm
Home Ceramic Firing Furnaces:
Technical Specification
Heating system: Electrical / 220 V -1phase
Insulation: Ceramic Fibers and insulating Firebrick
Controller: Various programmable controllers
Power System: Zero cross switching system by triac and thyristor and without disturbing harmonics
