Copper Heat treatment Furnaces

Applications

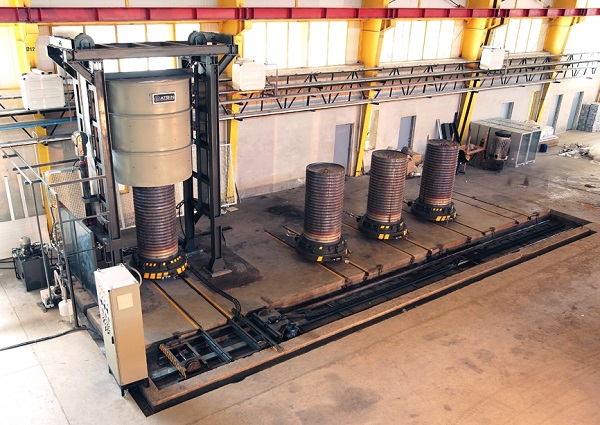

Heat treatment Furnaces :

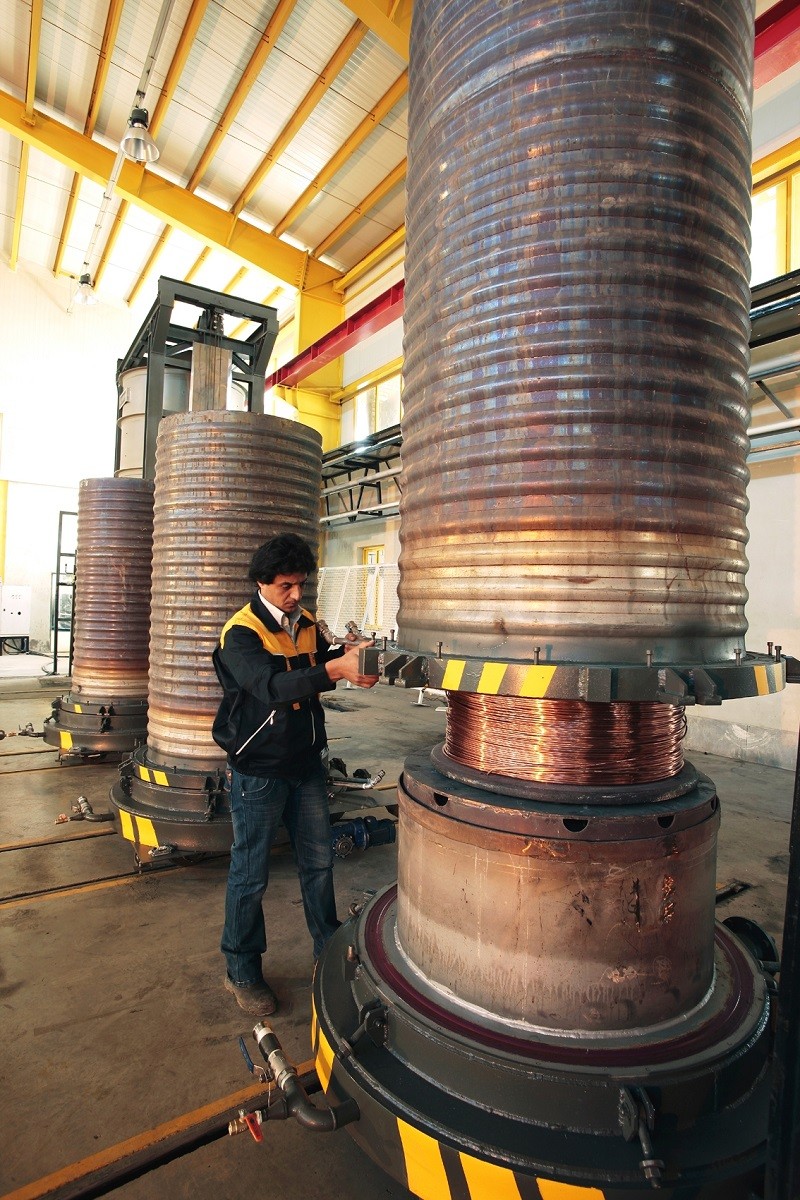

● For annealing of copper coils & wires

● Sealed internal chambers

● Under protective atmosphere or vacuum

● Special formed metalic retorts for vacuum applications

● Cooling stations can be added to control the cooling rate

● Bell type furnaces with Hydraulic cylinders is utilized for furnace movement

● Suitable design for heavy loading

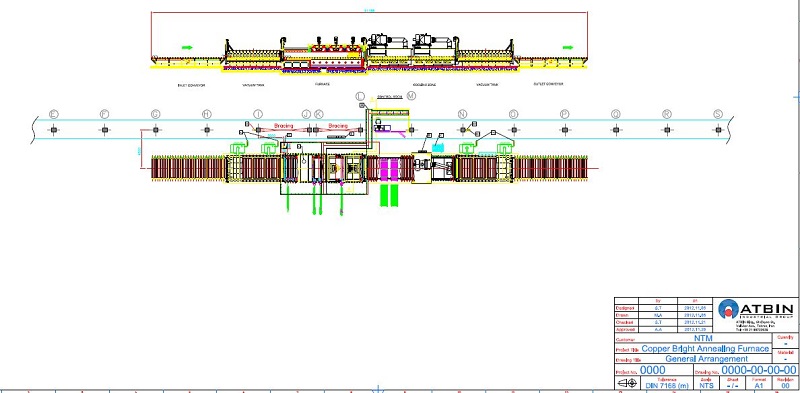

Copper Protective Atmosphere bright Annealing Furnaces (Under Construction):

● Used for annealing of copper tubes, coils and pan cake

● Max temperature 850 °C

● Roller heart continuous moving system

● Gas fired hearting system

● Indirect flame using radian tube

● With hot air circulation system

● Equilled with vacuum and cooling system

● PLC- controlled automation and central monitoring system
