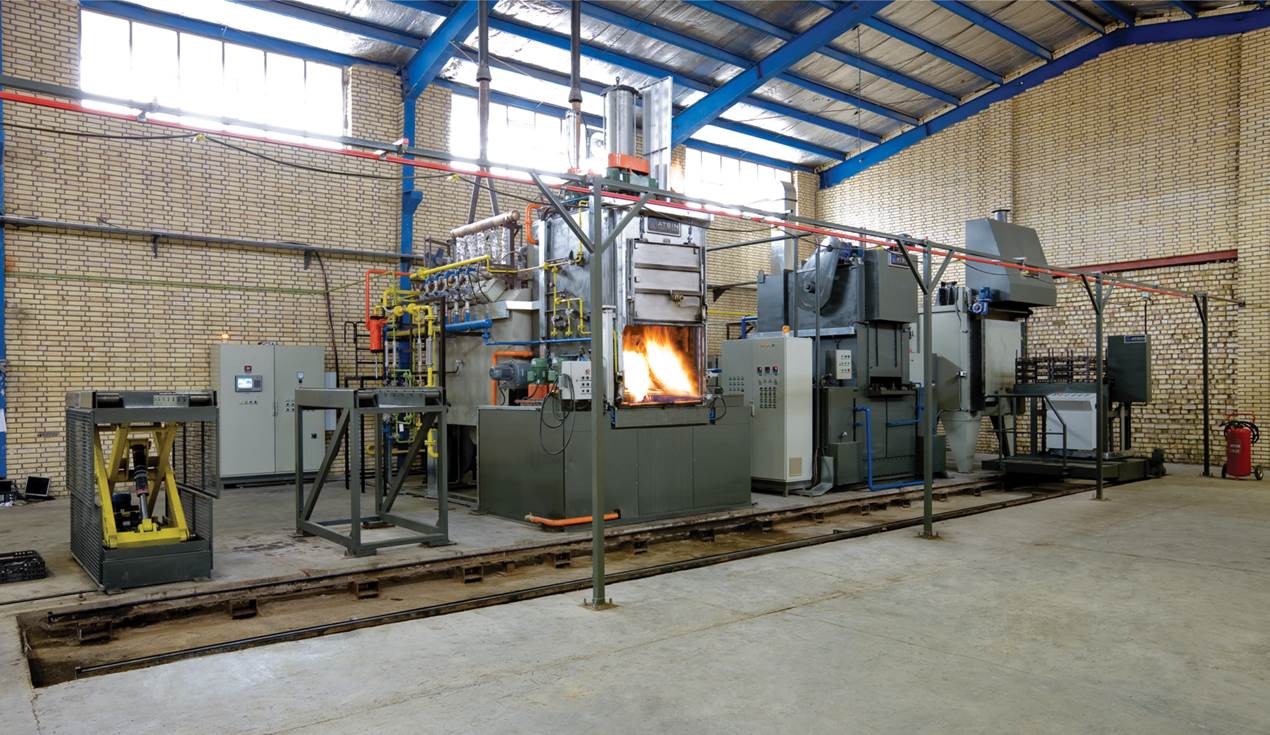

Gas Carburizing Line with 1000 Kg Capacity
Gas Carburizing Line with 1000 Kg Capacity
Suitable for carburizing, hardening and normalizing treatments
under protective atmosphere including:
● Main furnace (Fuel-fired/Electrical)
● Electrical tempering furnace with hot air circulation
● Washing machine
● Charging & transportation system
● Endothermic gas generator

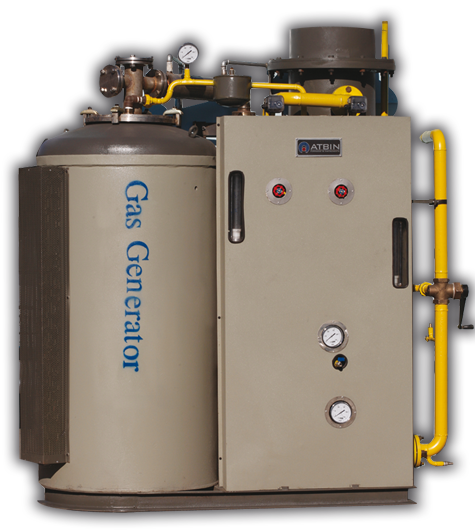

Endothermic Gas Generator
● Maximun temperature: 1100°C
● Dew point of the atmosphere is controlled & measured
● Electrical/Fuel-fired heating system
● Internal chamber made from heat resistant steels
● Capacity 10m3/hr - 40m3/hr

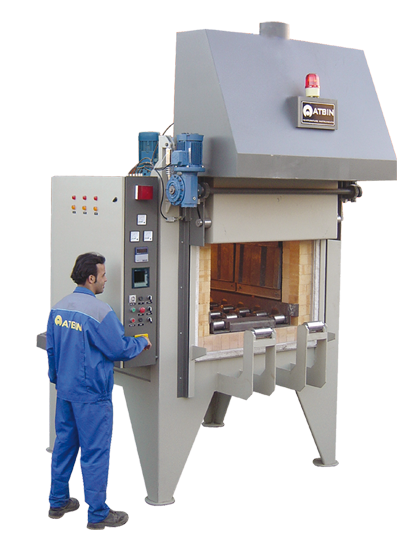

Tempering & Preheating Furnace
● Electrical heating system
● Maximum operating temperature of 650°C
● Loading weight up to 1000 Kg
● Roller hearth loading/unloading system
● Hot air circulation system to reach to the
best thermal uniformity

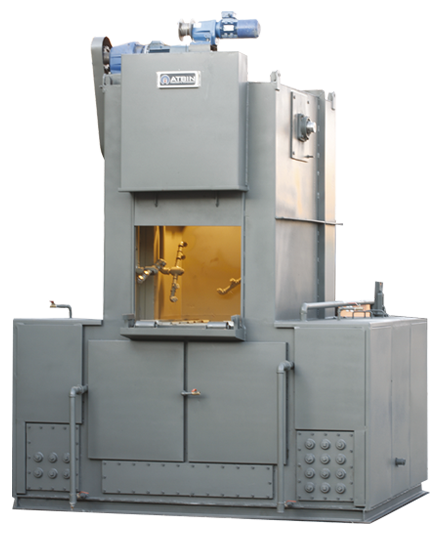

Washing Machine
● Two separated chambers for degreasing treatment by immerging
and spraying method
● System for separating oil and grease from degreasing solvent in
each chamber
● Electrical heating system
● Motorized rising door
● Automatic level control system of solvent in both chambers
